“Red Arrow SUV” MOC- Building Instructions

Made by: Scroll down to Vendor Info Tab

£5.50

Instant download
Instant download available
Digital instructions + parts list
Customer Happiness 4.6 / 5.0
Pay safe with PayPal
 NO bricks are included, you are buying digital instructions and a parts list.
Need help buying your LEGO bricks? Check out this video!

How to Buy Bricks With Bricklink

This video guide below will walk you through how you can use Bricklink's easy buy option to buy your bricks with a few clicks of the mouse, yes it really is that simple!

If you have not seen our guides on creating wanted lists on Bricklink we advise you check this out first.
1. How to create a wanted list on Bricklink using an XML file
2. How to create a wanted list on Bricklink using an IO file
3. General Help

If you have any questions please do not hesitate to contact our support team who will gladly assist at support@bellevebricks.com or visit the contact page.

Short Description

“Red Arrow SUV” MOC, it is remote controlled using Power Functions elements; and it got this name because of its front shape and color, and of course, it’s an SUV. Features return to center steering, independent front suspension, rear wheel drive with open differential.

Detailed Description + Tabs

Description

Titulo3D model

Hello and thank you for checking out my MOC, much appreciated. I call it “Red Arrow” due to its front design and color.

This was one of the rare occasions in which i started building without knowing what i wanted to make. I was just doing experiments, trying developing a front section with steering and independent suspension using only common liftarms, connectors, axles and pins. After all, not everyone has those fancy, specific pieces for that purpose, so, yeah, why not?…
I was indeed able to create it and that was the starting point, seemed appropriate for an off roader, so i kept going in that direction; only later on when i already had the chassis assembled, did i decided it was going to be an SUV.

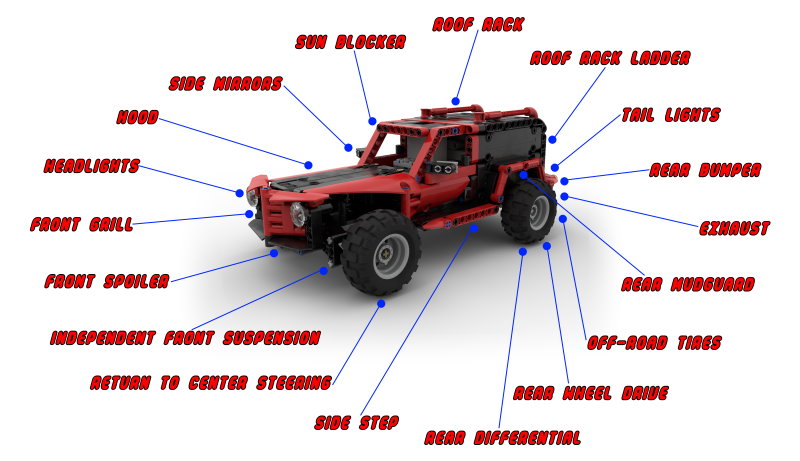

Highlights DetailsFeatures
Now let’s talk about the vehicle itself. It is 35 studs long, 20 studs wide, and 14 studs tall, somewhat small. At this scale, the smaller off road tires looked better, so i went with those. Being an SUV, it needed to have good ground clearance and it should at least be RWD, both requirements were met. I don’t usually include a differential on off road RC vehicles due to the high probability of them becoming stuck, but i added one on this MOC, it just seemed right, and the front suspension (without shock absorbers) is so responsive it will help the SUV maintain ground contact for sure.
One L-motor is used to drive the rear wheels, the ratio between the motor and the wheels is 1.167:1, so it is slightly biased towards torque. Another L-motor is controlling the steering, which returns to center automatically by using a rubber band driven mechanism. The IR receiver is occupying the driver’s cabin and the standard Power Functions battery pack is hidden inside the large trunk. To turn the SUV on or off, you just need to push or pull the ladder in the back respectively.

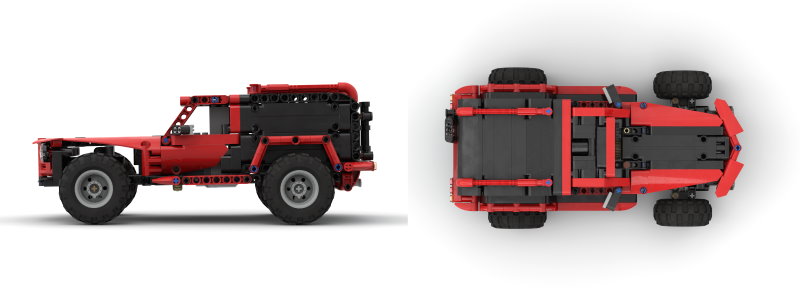

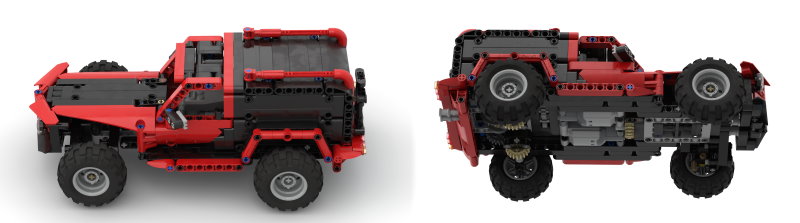

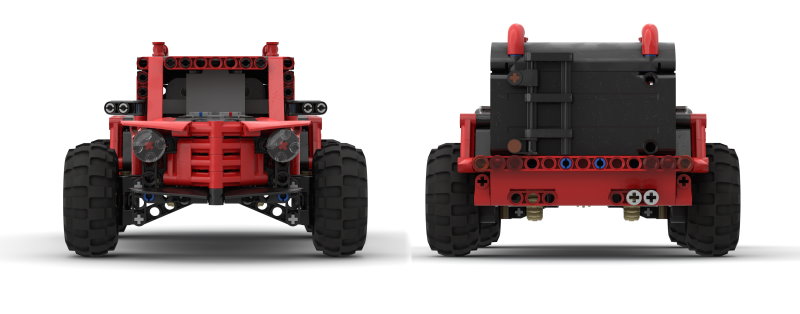

Photo GalleryGaleria 01Galeria 02Galeria 03Galeria 04Galeria 05
For me, the most interesting aspect about this MOC is definitively the steering with a decent turn radius and the independent suspension with long travel capabilities. They work flawlessly, so well i actually had to limit both the suspension travel and steering turning radius for this MOC to function properly. The building instructions point out the limiters, so you can choose not to include them if using this for your own MOCs.

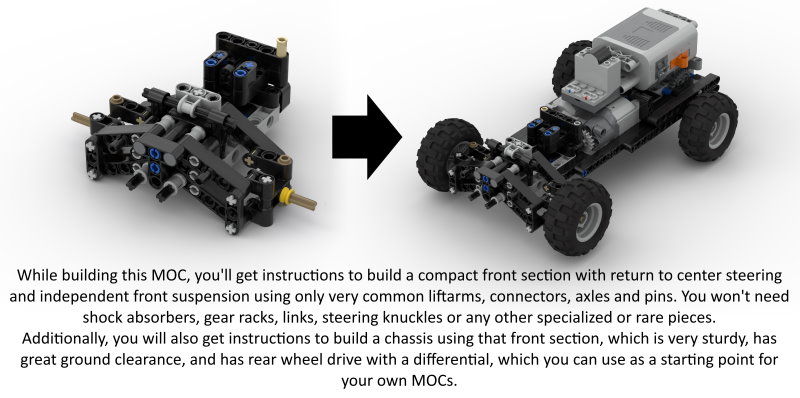

Front and chassis

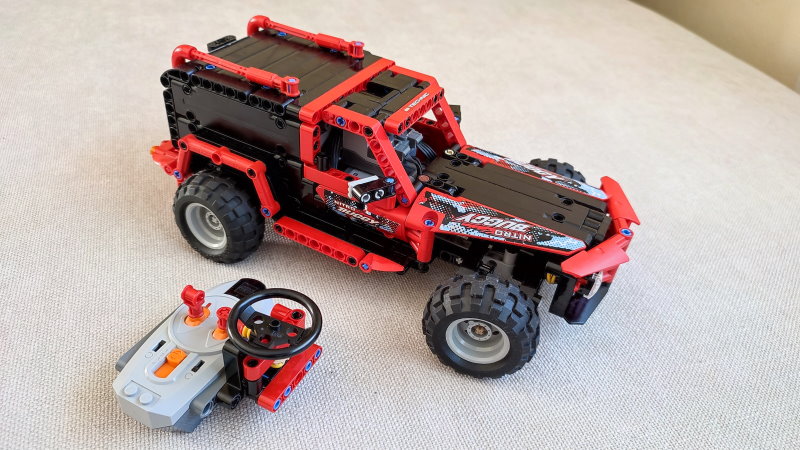

final

NO PHYSICAL BRICKS, ONLY DOWNLOADABLE CONTENT
With the purchase of this object you only purchase downloadable PDF instructions and Parts List
