"Subtractor Racer" MOC - Building Instructions

£5.88

You are buying digital instructions and parts list, no bricks are included in this order.
Need help buying your LEGO bricks? Check out this video!
Buying your bricks through Bricklink
How to buy your bricks using Bricklink
This video guide will walk you through how you can use Bricklink's easy buy option to buy your bricks with a few clicks of the mouse... yes it really is that simple!
If you have not seen our guides on creating wanted lists on Bricklink we advise you check this out first.

How to create a wanted list on Bricklink using an xml file
How to create a wanted list on Bricklink using an io file

If you have any questions please do not hesitate to contact our support team who will gladly assist.
Swipe for More Tabs

Description

TituloR20ren
Welcome and thank you for checking out my MOC, i really appreciate it.

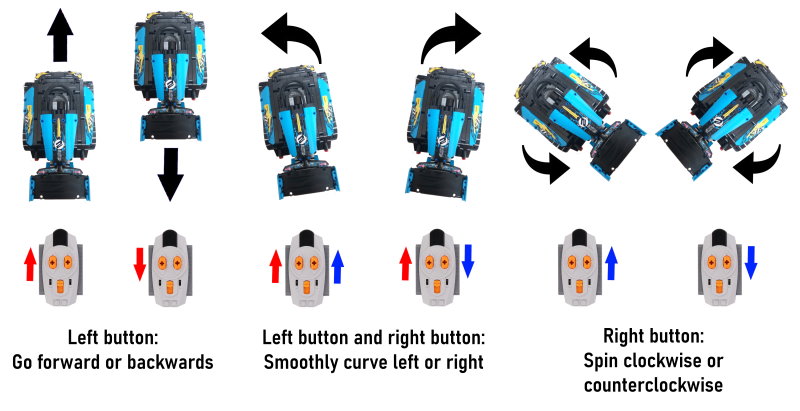

As the name implies, this MOC features a "subtractor mechanism". If you don't know what it is, a quick search online will answser your questions, show various versions and what it is used for, but in a nutshell, it allows tracked vehicles to take on curves very smoothly and be remote controlled the same way as any regular RC car: one lever to go forward/backward, and another to steer (check the picture below for reference).

Control Scheme TituloControl Scheme

I decided to do this MOC because there are plenty of subtractor mechanism examples and variations on the internet, but not many MOCs actually taking advantage of it, so here's my contribution. I developed my own subtractor mechanism version for this MOC.
The set 42095 was the main source for parts, so you're up to a good start if you have it, only needing additional liftarms, gears and some miscelanious pieces.
Highlights DetailsDetalhes
Since this MOC is intended to be a racer, i wanted it to be as fast as possible, but the subtractor mechanism requires so many gears to function, that it generates a lot of friction; the MOC itself is also somewhat heavy for its compact size (760g) despite several design optimizations. Keep in mind it's only one l-motor pushing the vehicle as the second l-motor is dedicated to steering (unlike conventional tracked vehicles in which both motors push the vehicle). This means i had to reduce the motor to wheels gear ratio (which is 1,667:1) to give it some extra torque.
I don't consider it to be slow (check the video below to get a better idea), but would love to see someone powering it with a buwizz on ludicrous mode as i don't have one.
Photo GalleryGaleria 1Galeria 2Galeria 3Galeria 4
This MOC was interesting to develop, hope you like it and have some fun with it.

NO PHYSICAL BRICKS, ONLY DOWNLOADABLE CONTENT
With the purchase of this object you only purchase downloadable PDF instructions and Parts List
